Orthopedic Cervical Thoracic Orthosis

OTS-NH002
Orthopedic Cervical Thoracic Orthosis

Indications:
Cervical spine surgery
Whiplash injury
Spinal cord injury of cervical

Functions & Features:
Immobilize cervical spine and upper thoracic spine
All straps are adjustable
Forehead strap adds stabilization
Front and back supports for chin and occiput provide maximum control and suitable comfort

Size: Universal

Instructions For Use:

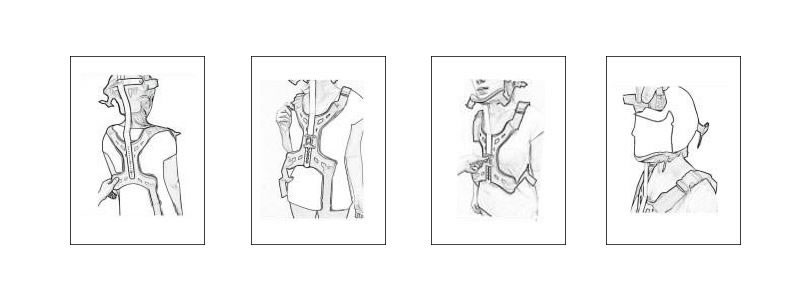

1. Detach all buckles of the head cervical thoracic orthosis.

2. Put on the brace and place back thoracic and occipital component in the position and adjust the occipital frame in the desired location.

3. Ensure the back component in the desired position and put front thoracic component in appropriate location (middle superior edge of front component should be 1-2” below the stemal notch).

4. Tighten the shoulder straps by hook and loop fastener to ensure back and front thoracic components in the desired position and then secure the waist buckles.

5. Open the snap to adjust the chin frame in a desirod position, and secure the occipital and chin buckles.

6. Apply the forehead strap on the forehead circumference.

7. Fasten all straps to ensure that the orthosis fits snugly.

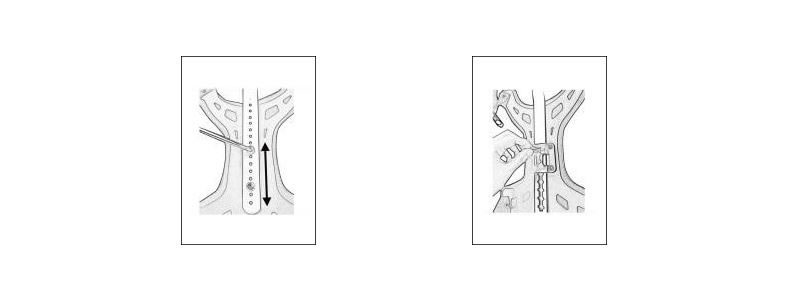

How To Adjust The Height of Occipital And Chin Frame:

1. Loosen the two screws. Adjust occipital frame to desired position and tighten screws.

2. Open the snap. Adjust chin frame to desired position and put the snap back.
