Medical Post OP Knee Braces

OTS-KN201
Medical Post OP Knee Braces

Indications:
Post-operative immobilization or ROM control
Injured or operated collateral and/or cruciate ligaments

Functions:
Excellent collateral stabilization via long side-bars prevents valgus or varus deviation
Prevent hyperextension and limit ROM by adjustable dial lock hinges

Features:
Dial lock hinges with adjustable ROM limitation
Extension limitation at: 0°, 15°, 30°, 45°, 60°, 75°
Flexion limitation at: 0°, 15°, 30°, 45°, 60°, 75°, 90°, 105°, 120°
Immobilization limitation at:0°, 15°, 30°, 45°, 60°, 75°
Medical post OP knee braces with laminated soft foam material forms the contour of thigh/leg and offers additional comfort
Length: 18”, 20”, 22”, 24”

Size: Universal

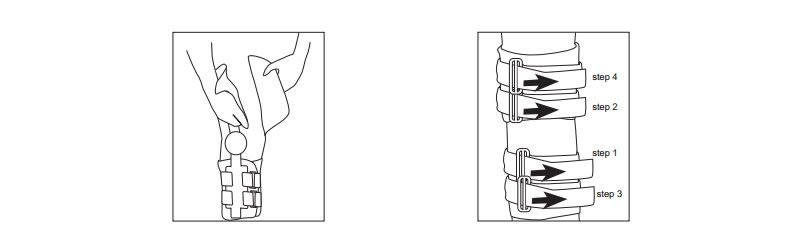

Instructions For Use

1. Refer to sizing chart to select proper size.

2. Wrap sleeve around leg.

3. Place hinge axis in line up with knee rotational axis.

4. Fasten all straps through D-rings.

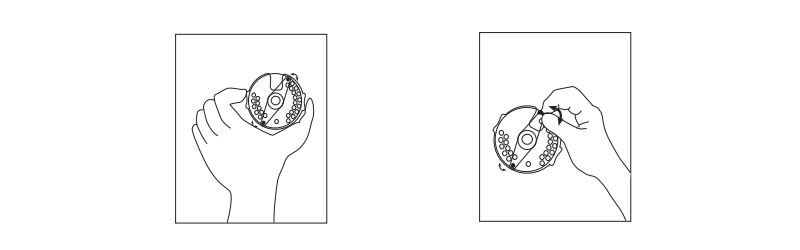

How To Set The ROM Hinge

1. Turn the cover to adjust the stop peg.

2. Remove stop peg to desired degree.

3. Turn the cover back to complete setting.
